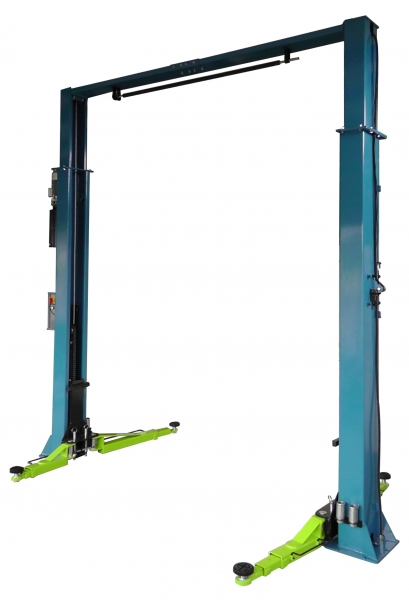

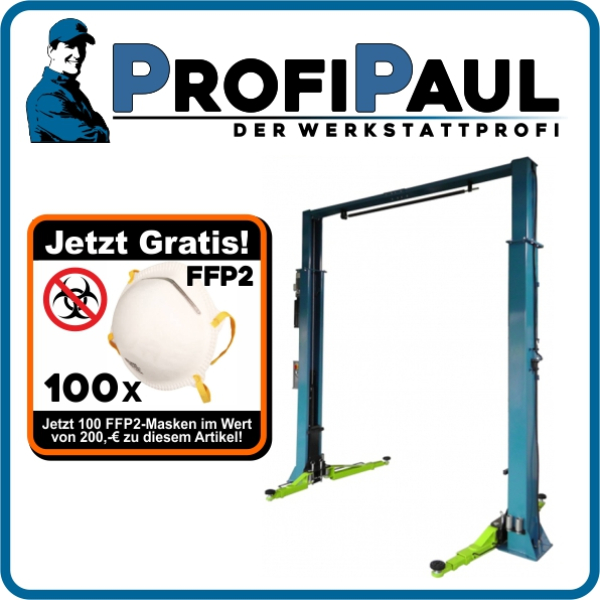

2-post lift electric 4,0t
type: DTPO 7093 E
new type of 2018
With an exceeding post distance for
an incredible car width of 2,6 m.
- electric version
- barrier-free

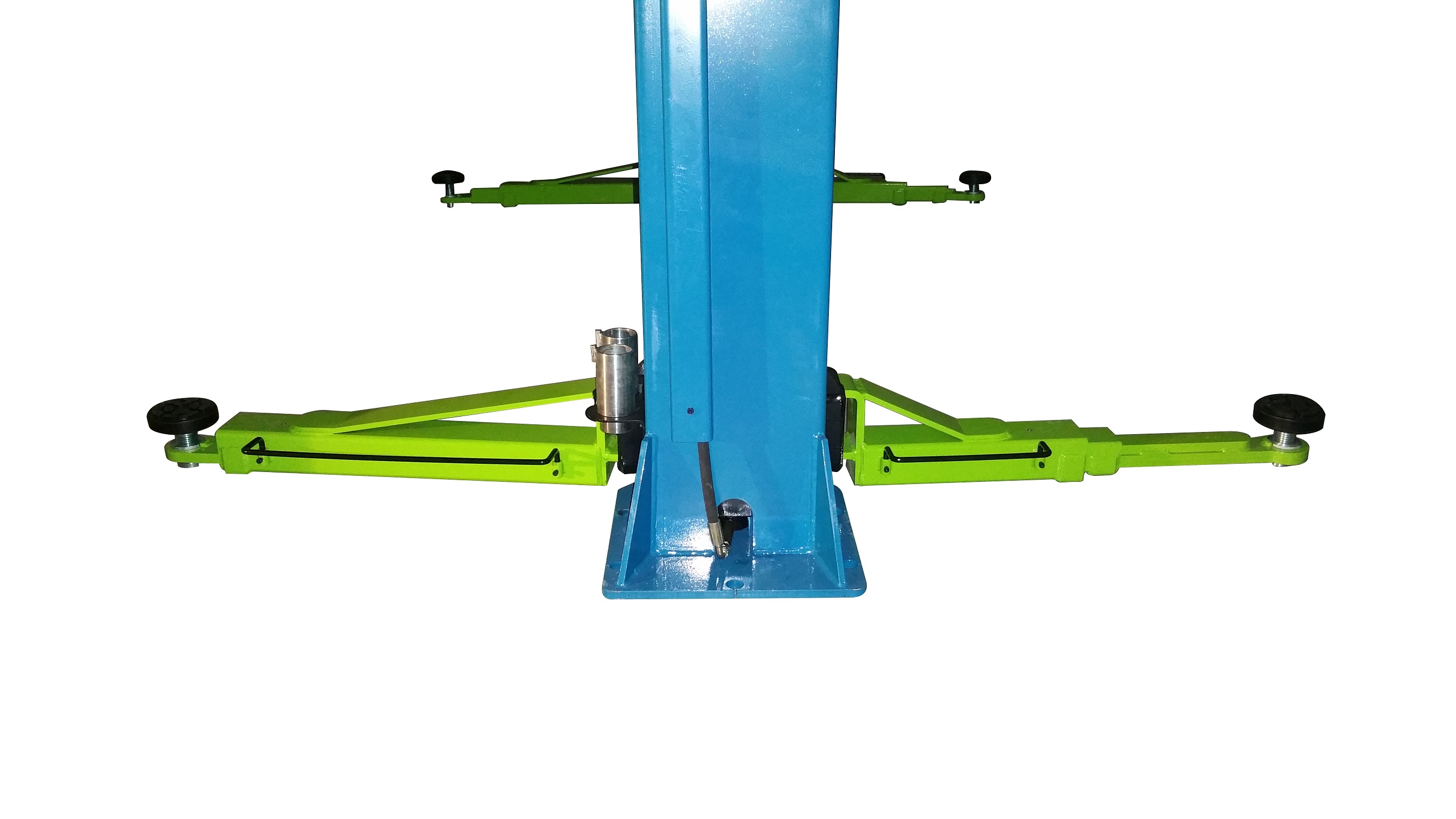

- incl. 3-piece telescoping arms

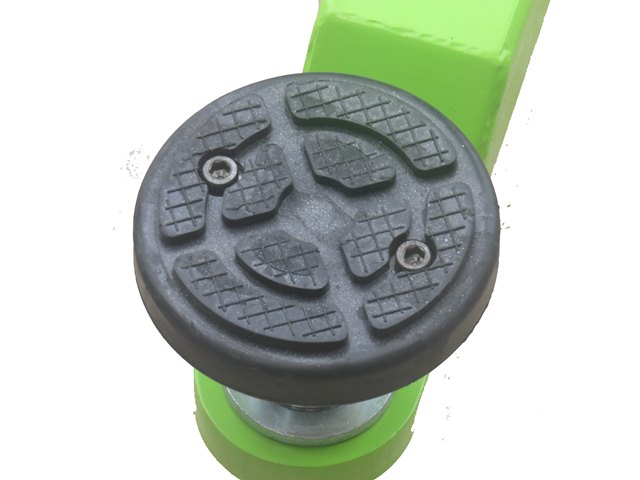

- incl. 4 screwable lift pads and extension-adapter

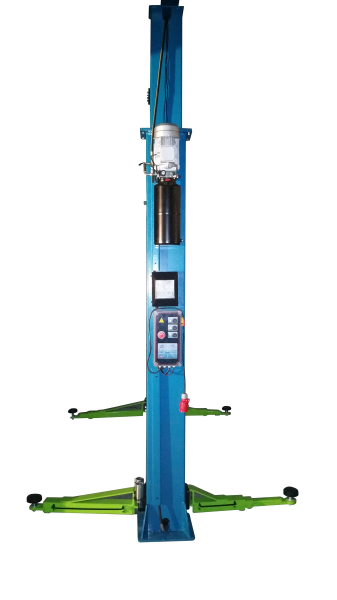

- incl. electric box and emergency stop
- dual cylinder lift system (cylinder & chain lift)
- two hydraulic cylinders for powerful lifting and lowering
- synchronisation control by balance ropes
- automatic safety locks

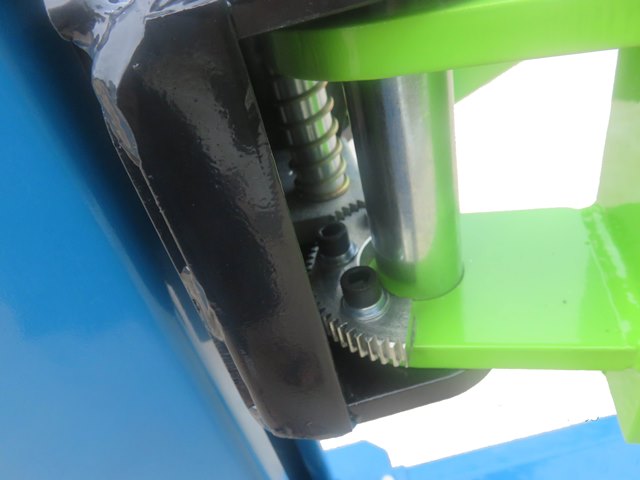

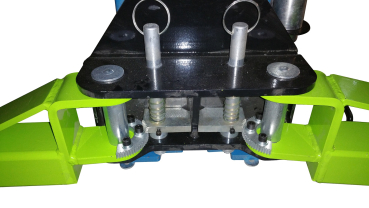

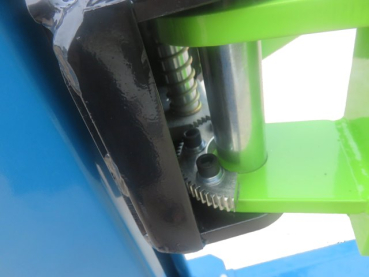

- automatic arm unlocking
- automatic stop at maximum height
- emergency release in case of power failure (optional)
- powder-coated (DIN 55633)
- manufactured by ISO 9001 standards
- incl. lifts log book, CE-Certificate (TÃœV approval possible)
|

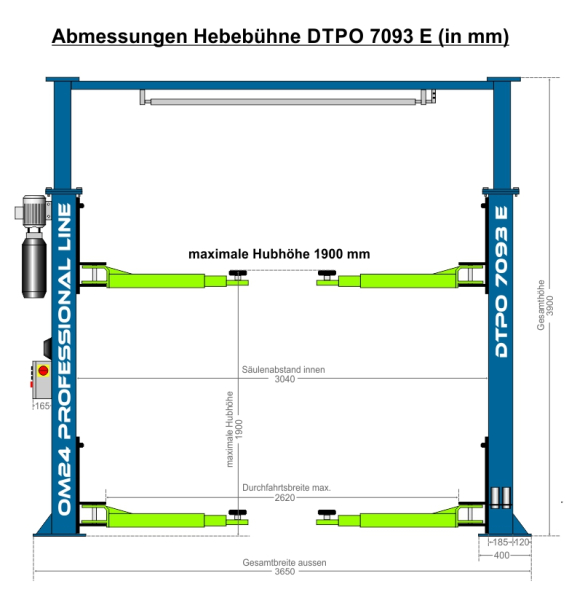

technical specifications
| lifting capacity | 4000 kg |
| max. lifting height | 1900 mm |
| min. lifting point | 120 mm |
| max. width (car) | 2620 mm |
| lifting/lowering time | 50 s / 30 s
fast lowering possible in 20 s |
| total width | 3650 mm |
| total height | 3900 mm |

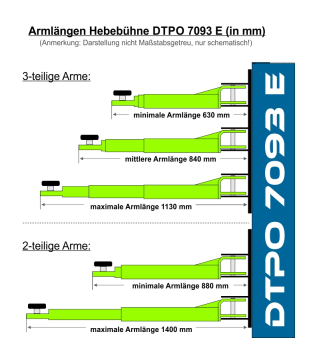

| arm length | 2 x 880 / 1460 mm
2 x 630 / 1130 mm |
| power supply | 380 V / 50 Hz or
220 V / 50 Hz |
| motor power | 2,2 kW / 16 A |
| volume | 75 dB |
| hydraulic oil | optional |
| weight | 620 kg |
packaging &
shipping weight | 3040 x 800 x 800 mm
650 kg |
payment & delivery
| delivery | prepayment (Paypal or bank transfer) |
| cash on delivery | cash (+ 39,- EUR C. O. D. charge and 30% deposit) |
| self-collection | prepayment or cash (+ 50,- EUR loading costs) |
| Europe-wide shipping | from 199,- EUR |
