DFPT 608 E Triple Heavy-Duty 4-Post Parking Lift – Park 3 Vehicles on a Single Parking Space
Triple Your Parking Capacity with Professional Parking Technology

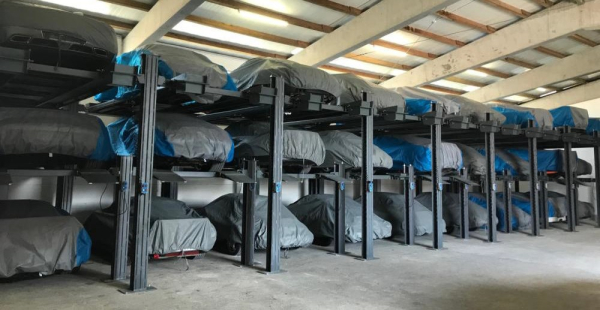

The fully electric DFPT 608 E Triple 4-post parking lift is the perfect solution for anyone looking to maximize available parking space. Whether for car dealerships, workshops, classic car collections, fleet operators, or private garages, this innovative parking system allows you to safely park up to 3 vehicles on the footprint of a single parking space.
Thanks to its intelligent triple-stacking design, valuable parking space can be utilized more efficiently without costly building extensions or renovations.

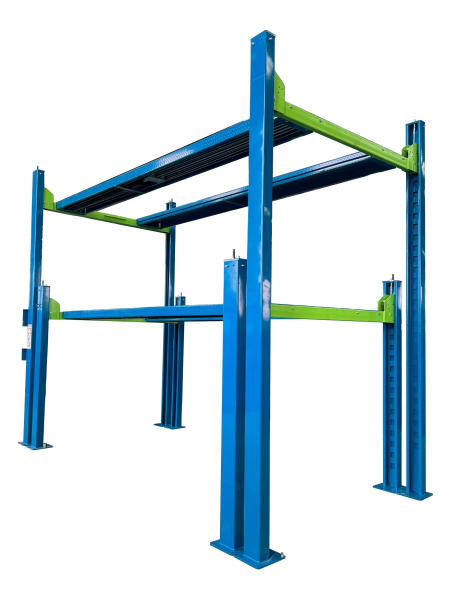

The lift features two parking platforms. The upper vehicle is parked first, followed by a vehicle on the middle platform. Once both platforms are raised, a third vehicle can be parked on the ground level below.
Your Benefits at a Glance
- Triple parking system for up to 3 vehicles
- Fully electric operation
- Space-saving design
- Heavy-duty construction made from reinforced steel
- Electric safety lock release system
- Hydraulic overload protection valve
- Powerful hydraulic cylinders
- Mechanical safety locks
- CE certified
- Manufactured according to ISO 9001 standards
- Optional mobility kit available
- Suitable for sports cars, sedans and SUVs
High Load Capacity and Maximum Flexibility
The middle platform supports vehicles up to 3,000 kg, while the upper platform can hold vehicles up to 2,500 kg. The ground-level parking space can accommodate vehicles depending on the floor condition.
With a clearance height of approximately 1,850 mm on the lower level, even larger SUVs can be parked comfortably.
The extra-low drive-on height is ideal for sports cars and lowered vehicles.
Technical Specifications
- Model: DFPT 608 E Triple
- Middle Platform Capacity: 3,000 kg
- Upper Platform Capacity: 2,500 kg
- Middle Platform Lift Height: 2,030 mm
- Upper Platform Lift Height: 3,720 mm
- Platform Length incl. Ramps: 5,060 mm
- Power Supply: 400 V (optional 230 V available)
- Motor Power: 3.0 kW
- Weight: 1,700 kg
- Color: Blue-Green
Optional Accessories
Optional galvanized drip trays protect vehicles parked below from oil, water, dirt, and other fluids.
Increase your parking capacity by 300% with the DFPT 608 E Triple Parking Lift.
