DTPO 7098 EP 4,0t Hebebühne, elektrisch

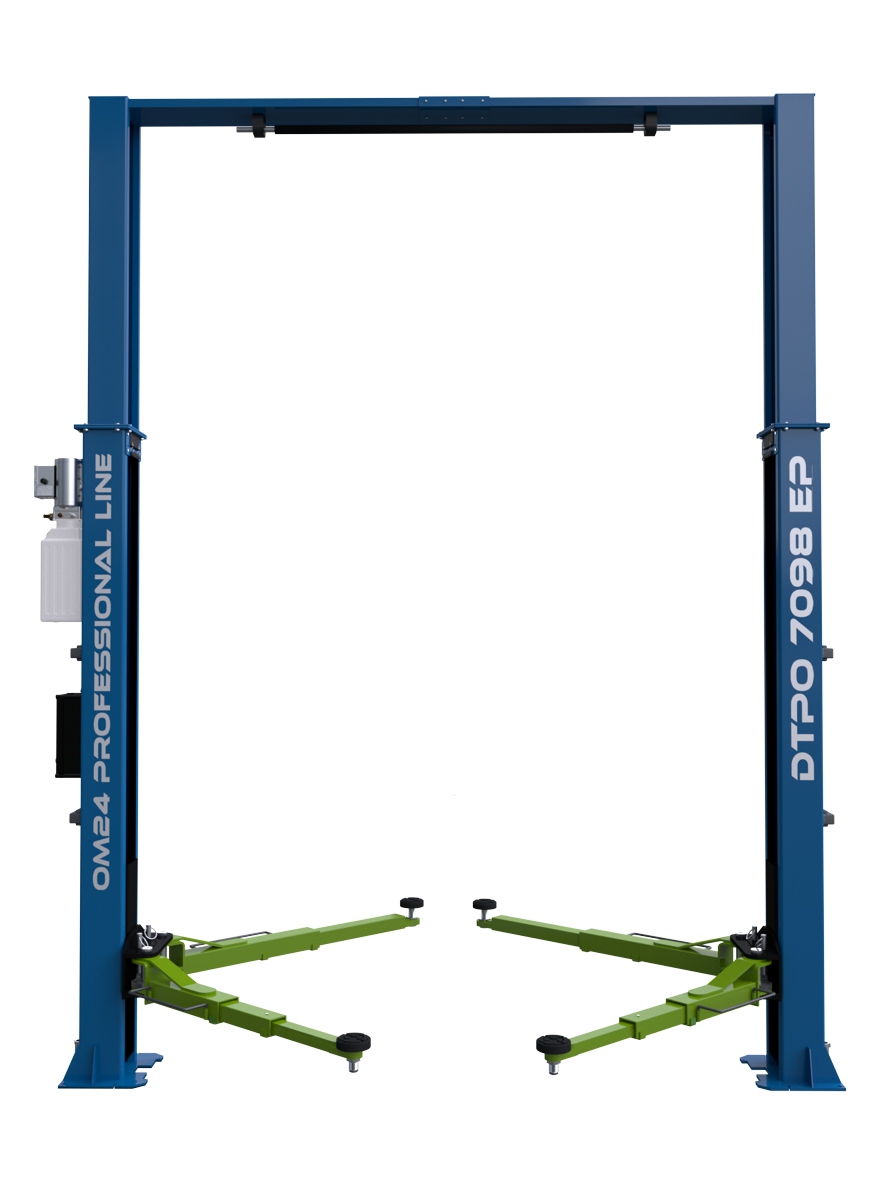

2 Post Vehicle Lift 4.0T DTPO 7098 EP – Clear Floor, Fully Electric & Extra High Design

The DTPO 7098 EP is a professional 2-post vehicle lift with a lifting capacity of 4,000 kg and an increased overall height of 4,300 mm. Its clear-floor construction offers maximum freedom of movement and is ideal for passenger cars, SUVs, vans, and taller commercial vehicles.

Contents

• ✔ Key Advantages
• ✔ Product Description
• ✔ Features & Equipment
• ✔ Technical Specifications

Key Advantages at a Glance

• ✅ 4,000 kg lifting capacity
• ✅ Extra-high design with 4,300 mm overall height
• ✅ Ideal for vans and taller vehicles
• ✅ Clear-floor construction without floor obstruction
• ✅ Fully electric unlocking system
• ✅ Anti-Liftup Technology
• ✅ Quick-slide replacement system
• ✅ Additional lower safety limit switch
• ✅ Automatic safety locking system
• ✅ Emergency lowering function during power failure
• ✅ CE certified
• ✅ 24-month warranty

Product Description

The DTPO 7098 EP has been specifically developed for professional workshops that regularly service larger vehicles. Its increased overall height of 4,300 mm provides additional workspace inside the lift area and offers improved access when working on vans and commercial vehicles.

Thanks to its clear-floor design, transmission jacks, tool carts and other workshop equipment can be moved freely underneath the vehicle without any floor-level obstruction. The modern fully electric release system operates conveniently via four electromagnets at the push of a button.

The innovative quick-slide replacement system allows guide blocks to be replaced without removing the lifting carriages from the columns. This significantly reduces maintenance time and operating costs.

The integrated Anti-Liftup Technology enables the lift to be lowered directly without first raising the safety locks. This feature is particularly valuable during engine and transmission removal and installation work.

Professional Features & Equipment

• Fully electric operation
• Clear-floor design without floor plate
• Overall height: 4,300 mm
• Quick-slide replacement system
• Anti-Liftup Technology
• Additional lower safety switch
• Two hydraulic cylinders
• Four electromagnets for automatic unlocking

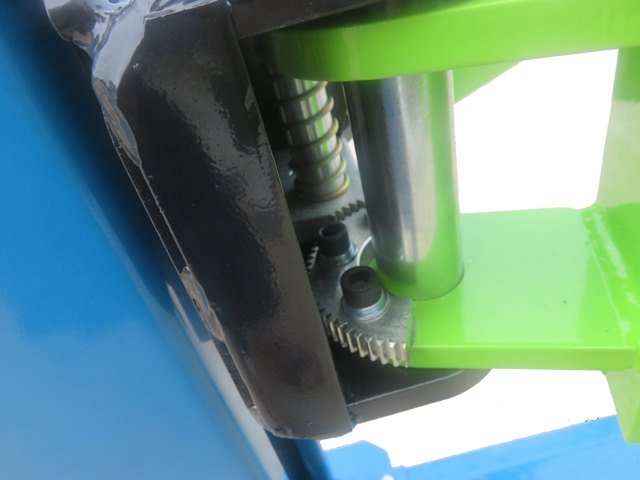

• Automatic safety locks

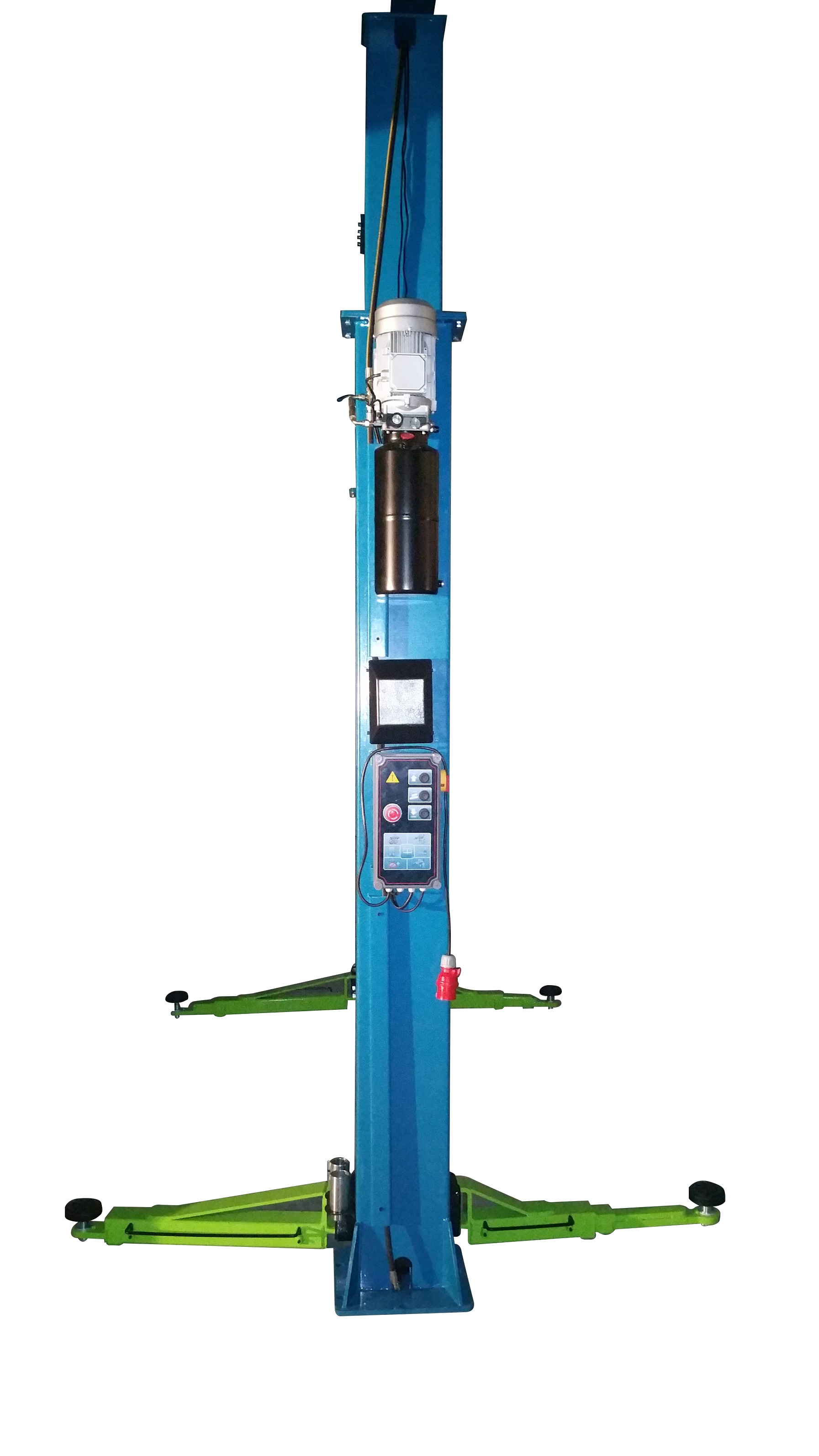

• Electrical control box with emergency stop
• Dual lifting system (hydraulic cylinder and chain drive)
• Synchronization via equalizing cables
• Heavy-duty internal lifting arms
• Powder-coated finish according to DIN 55633
• Manufactured according to ISO 9001 standards

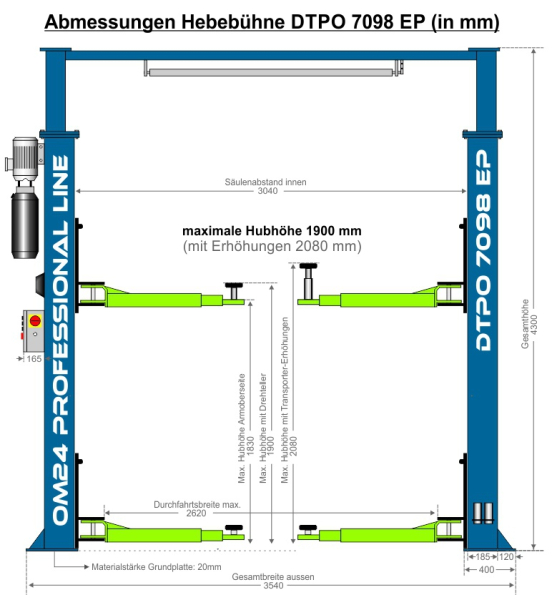

Technical Specifications

• Lifting Capacity: 4,000 kg
• Maximum Lifting Height: 1,900 mm
• Minimum Pad Height: 120 mm
• Maximum Drive-Through Width: 2,620 mm
• Overall Width: 3,540 mm
• Overall Height: 4,300 mm
• Lifting Time: Approx. 50 seconds
• Lowering Time: Approx. 30 seconds
• Fast Lowering Function: Approx. 20 seconds
• Motor Power: 2.2 kW
• Power Supply: 400 V / 50 Hz
• Optional: 230 V version available
• Machine Weight: 680 kg
• Shipping Weight: 730 kg

Ideal Applications

• Automotive repair workshops
• Commercial vehicle service centers
• Tire service shops
• Van maintenance facilities
• Body and paint shops
• Motorsport workshops
• Professional mechanics and serious DIY users

Maximum Safety

In addition to the standard anti-crush arm protection, the DTPO 7098 EP features an additional lower safety limit switch located at the bottom of the columns. Automatic safety locks, an emergency lowering function and CE-compliant construction ensure maximum operational safety and reliability.

Scope of Delivery

• 2 Post Vehicle Lift DTPO 7098 EP

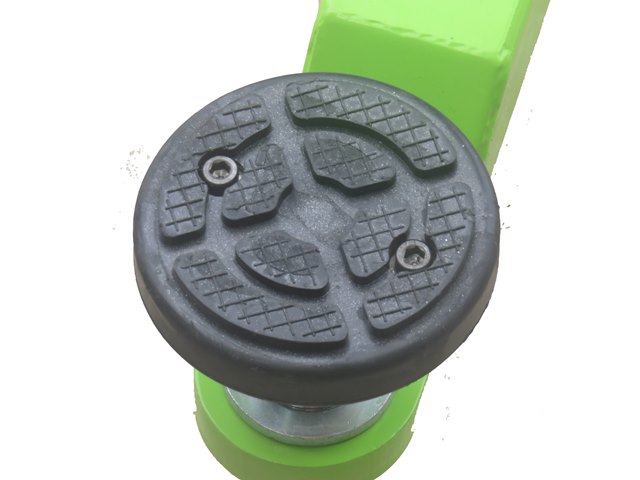

• 4 Adjustable Lifting Pads
• 4 Heavy-Duty Rubber Pads
• 4 Van Adapters (85 mm)
• Heavy-Duty Anchor Bolts M20 x 210 mm
• Inspection Log Book
• Operating Manual
• CE Certificate
