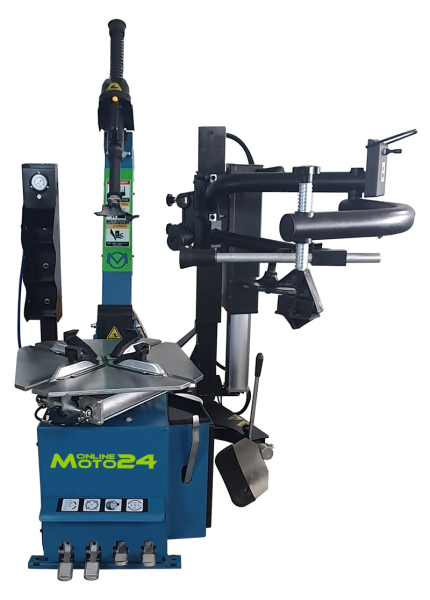

Our tire mounting machine with its swiveling mounting arm
is ideal for car and transporter tires.
incl. swiveling mounting arm
incl. 4x plastic protector and 1 x bucket (1 L)
incl. tire filler, mounting iron, oiler,
water separator and pressure relief valve
easy handling:
› scroll chuck up to 23 inches
› plastic slider as protection for the rims
› powerful cylinder
technical specifications
gear width
13 inches (330 mm)
wheel diameter
40 inches (1000 mm)
inner wheel tension
12 - 23 inches
outer wheel tension
10 - 20 inches
bead breaker force
2500 kg
compressed air supply
8 - 10 bar
power supply
380 V
(220 V optional)
motor power
0,75 / 1,1 kW
weight
210 kg
packaging &
shipping weight
970 x 750 x 1020 mm
220 kg

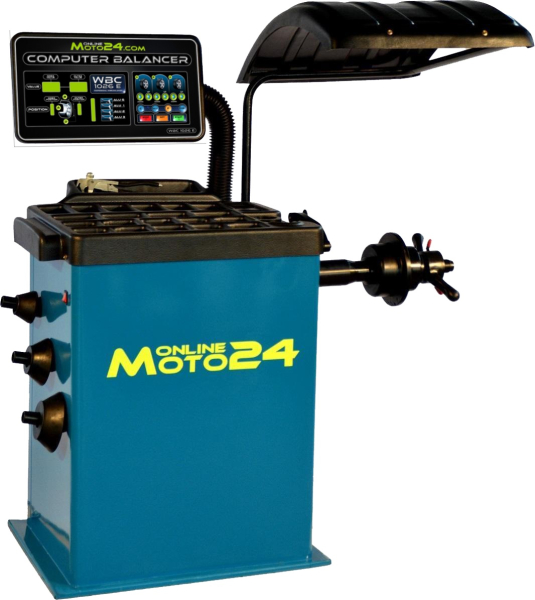

wheel balancer
Basic-Line
type: WBC 1026 E
new type of 2017
incl. 4x centering cones and 100 g weights
incl. weight pliers, gauge, quick clamp device
dimensions in inch or millimeter
unbalance indication in ounce or gram
easy handling:
› LED touch-display
› microprocessor control
› self-calibrating and diagnostic program
› automatic start when closing the protective cover
› automatic braking after successful measurement
› programs for steel rims, alloy rims and optimisation
technical specifications
rim width
2 - 35 inches
rim diameter
10 - 26 inches
max. wheel weight
65 kg
balance accuracy
+ / - 1 g
measuring time
8 sec
balancing drive
220 rpm
power supply
220 V
motor power
0,2 kW
volume
70 dB
weight
320 kg
packaging &
shipping weight
1150 x 850 x 1020 mm
350 kg
With this package you get our compressor
CL 369/8/50 in the value of 199,- EUR for free.

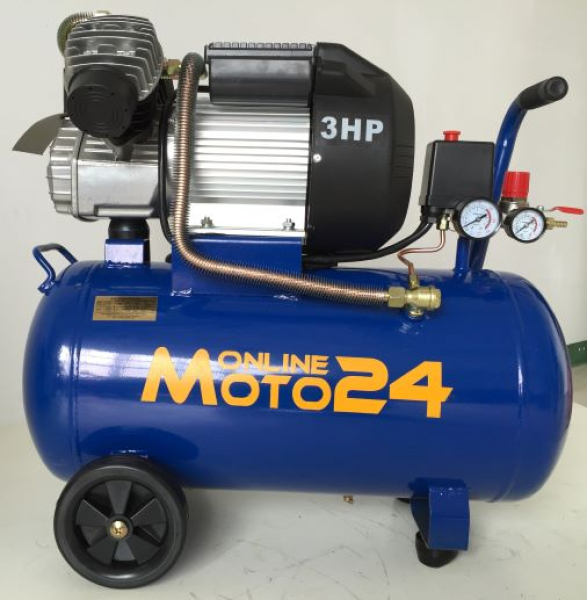

compressor 8 bar 50 L
type: CL 369/8/50
incl. all required cables and plugs
technical specifications
suction capacity
369 L/min
speed rate
2800 rpm
max. air pressure
8 bar
tank volume
50 L
power supply
220 V / 50 Hz / 16 A
motor power
2,2 kW / 3 HP
cylinder
2
volume
78 dB
weight
30 kg
packaging &
shipping weight
740 x 360 x 610 mm
40 kg
payment & delivery
delivery
prepayment (Paypal or bank transfer)
cash on delivery
cash (+ 39,- EUR C. O. D. charge and 30% deposit)
self-collection
prepayment or cash (+ 30,- EUR loading costs)
Europe-wide shipping
from 269,- EUR
Customer reviews
Unfortunately there are no review yet. Be the first who rate this product.

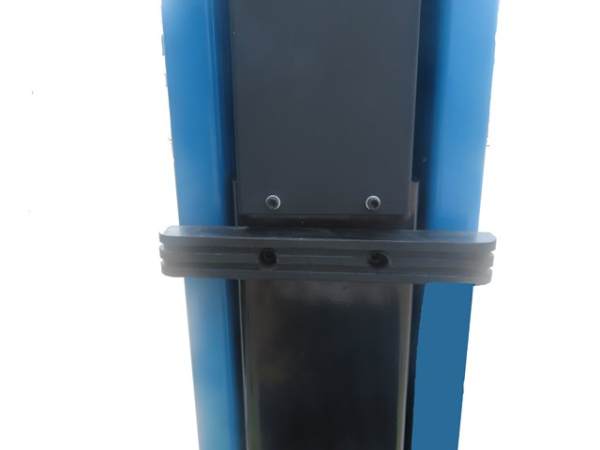

![ProfiPaul Garage Set \"Superior\" door protection](images/product_images/popup_images/komplettset2_5_1397_6.jpg "ProfiPaul Garage Set \\"Superior\\" door protection")
