Product No.:
01500302
ca. 12 Weeks ca. 12 Weeks (abroad may vary)
our standard price 5.919,81 EUR
your price 4.199,00 EUR

incl. 19% tax excl. Selfpicking or Shipping costs

Add to wish list
PayPal ECS
Description

garage set "Superior"

type: DTPF 6093 E + RTC 1023 + WBC 1026 E + DLK-370/50

Our Superior-Set includes the following products:
electric 2-post lift & mounting machine & wheel balancer
+ compressor FOR FREE


2-post lift electric 4,0t with floor plate

type: DTPF 6093 E

new type of 2017
new coloring: black & blue

  • electric version
  • constructed with floor plate
  • incl. 3-piece telescoping arms
  • incl. 4 screwable lift pads and extension-adapter
  • incl. electric box and emergency stop
  • dual cylinder lift system (cylinder & chain lift)
  • two hydraulic cylinders for powerful lifting and lowering
  • synchronisation control by balance ropes
  • automatic safety locks
  • automatic arm unlocking
  • automatic stop at maximum height
  • emergency release in case of power failure
  • without chain protection
  • powder-coated (DIN 55633)
  • manufactured by ISO 9001 standards
  • incl. lifts log book, CE-Certificate (TÃœV approval possible)

technical specifications

lifting capacity4000 kg
max. lifting height1900 mm
2080 mm incl. adapter
min. lifting point120 mm
max. width (car)2440 mm
lifting/lowering time50 s / 30 s
fast lowering possible in 20 s
total width3370 mm
total height2830 mm
arm length2 x 880 / 1460 mm
2 x 630 / 1130 mm
power supply380 V / 50 Hz or
220 V / 50 Hz
motor power2,2 kW / 16 A
volume75 dB
hydraulic oiloptional
weight520 kg
packaging &
shipping weight		2850 x 800 x 730 mm
550 kg

Tire mounting machine up to 23 inches
Basic-Line

type: RTC 1023

Our tire mounting machine with its swiveling mounting arm
is ideal for car and transporter tires.

  • incl. swiveling mounting arm
  • incl. 4x plastic protector and 1 x bucket (1 L)
  • incl. tire filler, mounting iron, oiler,
    water separator and pressure relief valve
  • easy handling:
    › scroll chuck up to 23 inches
    › plastic slider as protection for the rims
    › powerful cylinder

technical specifications

gear width13 inches (330 mm)
wheel diameter40 inches (1000 mm)
inner wheel tension12 - 23 inches
outer wheel tension10 - 20 inches
bead breaker force2500 kg
compressed air supply8 - 10 bar
power supply380 V
(220 V optional)
motor power 0,75 / 1,1 kW
weight210 kg
packaging &
shipping weight		970 x 750 x 1020 mm
220 kg

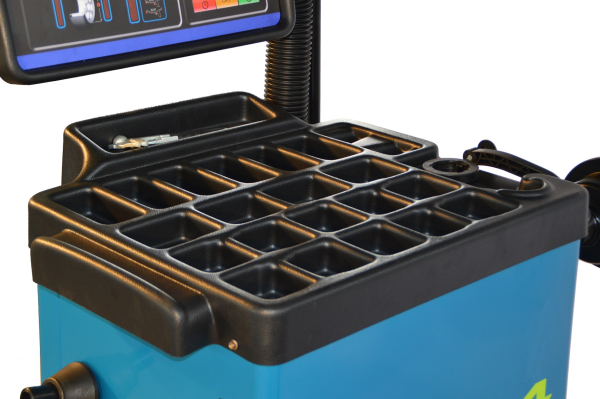

wheel balancer
Basic-Line

type: WBC 1026 E

new type of 2017

  • incl. 4x centering cones and 100 g weights
  • incl. weight pliers, gauge, quick clamp device
  • dimensions in inch or millimeter
  • unbalance indication in ounce or gram
  • easy handling:
    › LED touch-display
    › microprocessor control
    › self-calibrating and diagnostic program
    › automatic start when closing the protective cover
    › automatic braking after successful measurement
    • › programs for steel rims, alloy rims and optimisation

technical specifications

rim width2 - 35 inches
rim diameter10 - 26 inches
max. wheel weight65 kg
balance accuracy+ / - 1 g
measuring time8 sec
balancing drive220 rpm
power supply220 V
motor power 0,2 kW
volume70 dB
weight320 kg
packaging &
shipping weight		1150 x 850 x 1020 mm
350 kg

With this package you get our compressor
CL 369/8/50 in the value of 199,- EUR for free.


compressor 8 bar 50 L

type: CL 369/8/50

  • incl. all required cables and plugs

technical specifications

suction capacity369 L/min
speed rate2800 rpm
max. air pressure8 bar
tank volume50 L
power supply220 V / 50 Hz / 16 A
motor power2,2 kW / 3 HP
cylinder2
volume78 dB
weight30 kg
packaging &
shipping weight		740 x 360 x 610 mm
40 kg

payment & delivery

deliveryprepayment (Paypal or bank transfer)
cash on deliverycash (+ 39,- EUR C. O. D. charge and 30% deposit)
self-collectionprepayment or cash (+ 30,- EUR loading costs)
Europe-wide shipping from 269,- EUR
