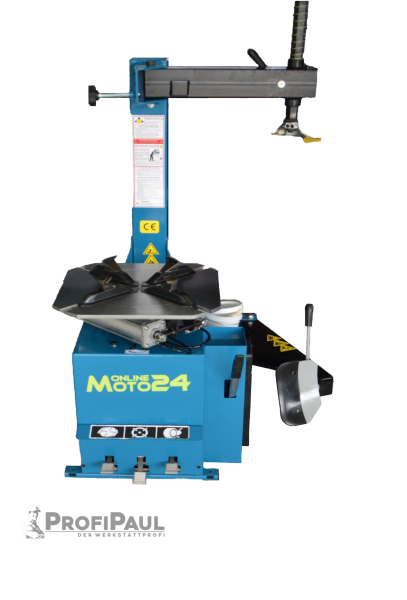

Our tire mounting machine with its swiveling mounting arm
is ideal for car and transporter tires.
incl. swiveling mounting arm
incl. 4x plastic protector and 1 x bucket (1 L)
incl. tire filler, mounting iron, oiler,
water separator and pressure relief valve
easy handling:
› scroll chuck up to 23 inches
› plastic slider as protection for the rims
› powerful cylinder
technical specifications
gear width
13 inches (330 mm)
wheel diameter
40 inches (1000 mm)
inner wheel tension
12 - 23 inches
outer wheel tension
10 - 20 inches
bead breaker force
2500 kg
compressed air supply
8 - 10 bar
power supply
380 V
(220 V optional)
motor power
0,75 / 1,1 kW
weight
210 kg
packaging &
shipping weight
970 x 750 x 1020 mm
220 kg

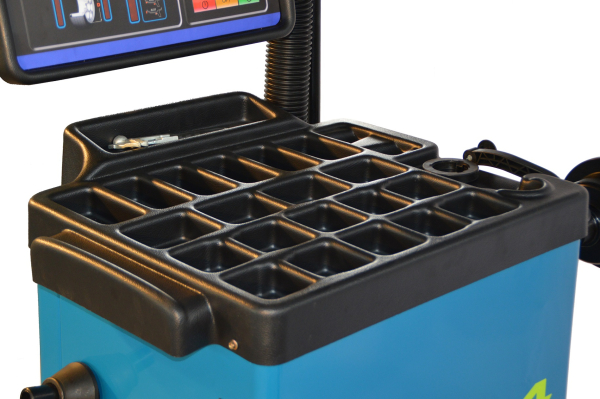

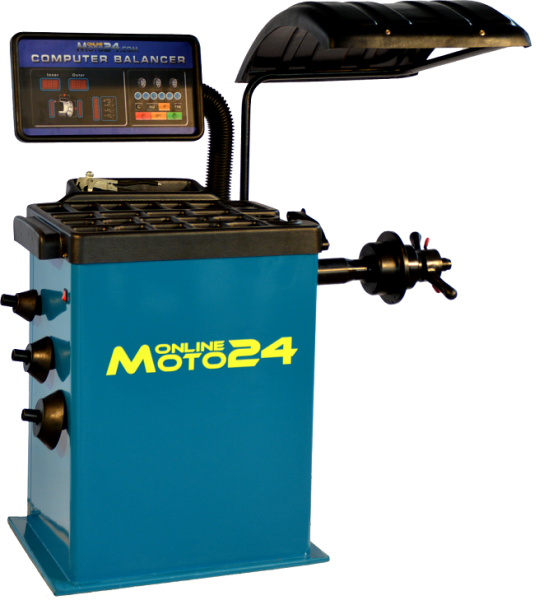

wheel balancer
Basic-Line
type: WBC 1026 E
new type of 2017
incl. 4x centering cones and 100 g weights
incl. weight pliers, gauge, quick clamp device
dimensions in inch or millimeter
unbalance indication in ounce or gram
easy handling:
› LED touch-display
› microprocessor control
› self-calibrating and diagnostic program
› automatic start when closing the protective cover
› automatic braking after successful measurement
› programs for steel rims, alloy rims and optimisation
technical specifications
rim width
2 - 35 inches
rim diameter
10 - 26 inches
max. wheel weight
65 kg
balance accuracy
+ / - 1 g
measuring time
8 sec
balancing drive
220 rpm
power supply
220 V
motor power
0,2 kW
volume
70 dB
weight
320 kg
packaging &
shipping weight
1150 x 850 x 1020 mm
350 kg
With this package you get our compressor
CL 369/8/50 in the value of 199,- EUR for free.
