Due to our plug connection it's quick and easy to switch
between a motorcycle lift to a quad lift.
There are two types available:
a) pneumatic model with foot pedal
(lifting power 790 mm / 90 s)
b) electric model (power supply of 220 V or 380 V)
(lifting power 790 mm / 10 s)
incl. threepart ramps (removable)
6-step safety locks
smooth vertical adjustment
removable floor and side plates (e.g. for oil change)

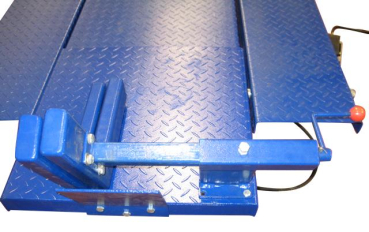

manual front wheel fixation (smoothly adjustable)
powder-coated checker plate
technical specifications: lifting ramp
lifting capacity
500 kg
total length
2960 mm
2100 mm excl. ramps
total width
1300 mm
600 mm excl. side plates
total height
120 mm - 860 mm
power supply
380 V or
220 V
hydraulic line
3 m
hydraulic oil
optional
weight
350 kg
packaging &
shipping weight
2200 x 1000 x 600 mm
370 kg
technical specifications: intermediate lift
lifting capacity
500 kg
max. lifting height
460 mm
min. lifting point
130 mm
measure (l/w/h)
510 x 200 x 130 mm
