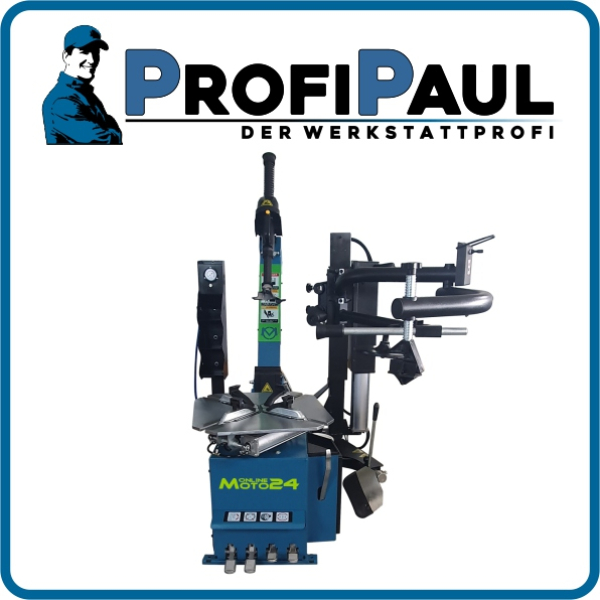

Tire Changer RTC 1025 HLA 1025
Incl. assist arm, for rims up to 26 inches (internal clamping)
Product Features
The RTC 1025 HLA 1025 tire changer is a proven professional model with comprehensive equipment. It is perfectly suited for workshops with high workloads and for various tire types.
It allows fast and easy tire mounting up to 26 inches internal clamping. The clamping range can be extended or reduced using optional clamping jaws – also ideal for motorcycle rims.
The tilting mounting column comes pre-assembled. The additional pneumatic assist arm makes mounting and demounting runflat, low-profile, car, motorcycle and light transporter tires particularly easy.
Standard equipment includes an oiler, water separator and pressure regulator, as well as 4 plastic rim protectors, a bucket, tire inflator and mounting lever.
The foot pedals are intuitive and easy to operate. The turntable rotates left and right, offering maximum flexibility.
The 220 V version is also equipped with a high‑performance industrial motor and operates just as powerfully as the 380 V model.
The machine is pre‑assembled and ready for immediate use – no complex installation required.
Our machines are tested according to the Machinery Directive with type examination and meet all current safety standards and requirements.
Equipment Overview
- Pneumatic tilting mounting column
- Pneumatic assist arm HLA 1025
- Turntable with left and right rotation

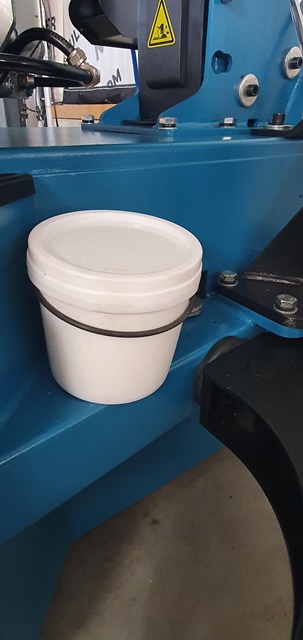

- 4x plastic rim protectors, 1x bucket (1 L)
- Tire inflator, mounting lever, oiler, water separator, pressure regulator
- Easy operation
- Pneumatic locking at the push of a button
- Self‑centering clamp up to 26 inches
- Plastic sliders for rim protection
- Powerful bead breaker cylinder
- German user manual
- 24‑month warranty
- Excellent spare parts availability
Technical Specifications
| Max. wheel diameter |
1040 mm |
| Max. wheel width |
14 inches / 356 mm |
| Internal clamping |
12 – 26 inches |
| External clamping |
10 – 22 inches |
| Bead breaker force |
2500 kg |
| Air supply |
max. 8 bar |
| Power supply |
220 V or 380 V |
| Motor power |
0.75 / 1.1 kW |
| Weight |
320 kg |
| Packaging dimensions |
1150 x 850 x 1020 mm |
| Shipping weight |
350 kg |
Payment and Shipping
- Payment: advance payment via PayPal or bank transfer
- Shipping: Europe‑wide delivery from 129 EUR
- Pickup in Pocking (94060): prepayment or cash
+ 69 EUR DHL reallocation fee
Best Price Guarantee
Found a cheaper tire changer? Give us a call! We compare competitor offers and provide you with our Best Price Guarantee.
User Manual
Available
