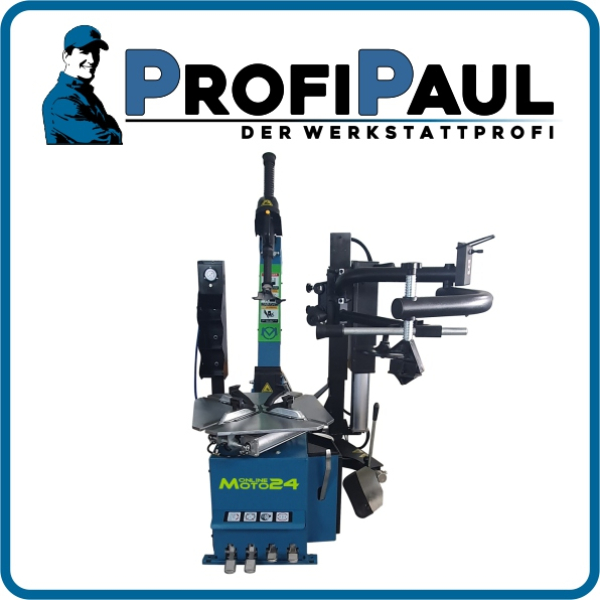

Tire Changer RTC 1025 HLA 1025
incl. assist arm, for rim width up to 26 inch internal clamping
Product Features
Tire changer RTC 1025 HLA 1025 - the proven professional model of our tire changer series.
The RTC 1025 HLA 1025 is ideal for workshops with heavy daily use and suitable for a wide range of tire types.
This machine enables fast and easy tire mounting up to 26 inch internal clamping. Extension or reduction of the clamping range and mounting of motorcycle rims is possible with our optionally available clamping jaws.
The tilting mounting column is included in the delivery and pre assembled. In addition, the RTC 1025 HLA 1025 is equipped with an extra pneumatic assist arm. This arm makes mounting and demounting of runflat, low profile and all other passenger car, motorcycle and light commercial tires extremely easy.
The basic equipment includes oil lubricator, water separator and pressure regulator. You also receive complete accessories: 4x rim protectors, bucket, tire inflator and mounting lever.
The foot pedals are self explanatory and very intuitive to use. The turntable can rotate left and right for maximum flexibility.
The 220 V version is equipped with an industrial high power motor, offering the same strong and continuous performance as a 380 V motor.
The machine is pre assembled and ready for quick setup. No complex electrical installation required.
Our machines are tested and approved according to the machinery directive with type examination. They always meet the latest standards and regulations.
Equipment Overview
- Pneumatic tilting mounting column
- Pneumatic assist arm HLA 1025
- Turntable rotation left and right
- 4x alloy rim protectors and 1x bucket 1 liter
- Tire inflator, mounting lever, oil lubricator, water separator, pressure regulator
- Easy operation
- Air lock by push button
- Self centering clamping unit up to 26 inch
- Plastic sliders for rim protection
- Powerful bead breaker cylinder
- German operating manual
- 24 months warranty
- Very good spare parts availability
Technical Data
| Max. wheel diameter |
1040 mm |
| Max. wheel width |
14 inch 356 mm |
| Clamping range internal |
12 - 26 inch |
| Clamping range external |
10 - 22 inch |
| Bead breaking force |
2500 kg |
| Air supply |
max. 8 bar |
| Power connection |
220 V or 380 V |
| Motor power |
0.75 / 1.1 kW |
| Machine weight |
320 kg |
| Packing size |
1150 x 850 x 1020 mm |
| Shipping weight |
350 kg |
Payment and Shipping
- Payment: Prepayment after purchase via Paypal or bank transfer
- Delivery: Europe wide shipping from 99 EUR
- Pickup Pocking 94060: Prepayment or cash + 100 EUR pickup fee
- Pickup Neutraubling 93073: Prepayment + 69 EUR pickup fee
Best Price Guarantee
You found a cheaper tire machine? Call us. We compare competitor offers with our machines and provide our best price guarantee.
Manual
Operating manual available.
Space Requirement
Space requirement for tire changer RTC 1025.
